TZ80 Secure Upgrade - Managed Edition (3 Years)

Firewall inspection throughput:750 Mbps
Threat prevention throughput:750 Mbps
Interfaces:4x 1GbE Cu, 1x 1G SFP
Max. SSL VPN Clients:5
£1,127.00
(£1,352.40 inc VAT)
03-SSC-3062
89 item(s)
+ −

*** This is an upgrade model, used when upgrading from an Eligible SonicWall Product or Eligible Competitive Product ***

The SonicWall TZ80 is a new generation firewall that fits beneath the Gen 8 TZ Series which includes the TZ280, TZ380, TZ480, TZ580 & TZ680 and available in different bundles.

SonicWall TZ80; the subscription-based NGFW purpose-built for small offices, home offices, and IoT, delivers best-in-class security efficacy and performance, and simplified management at a low TCO.

Protect your businesses and compact workspaces with intrusion prevention, anti-malware, content/URL filtering, and application control. SonicWall TZ80 delivers the same enterprise-grade advanced threat protection available with all our NGFWs, at best-in-class threat protection throughput and a low TCO on firewall inspection throughput.

Exercise the flexibility to meet changing security needs. TZ80 has subscription-based licensing, security service options, and a la carte reporting and analytics add-ons.

Accelerate time-to-value with rapid deployment and simplified administration with zero-touch provisioning, remote, mass deployment capabilities, and auto-synchronization.

Enhance security posture using the native integration with SonicWall Secure Edge for Zero Trust Edge (ZTE) and Security Services Edge (SSE) security model extensions.

With a SonicWall TZ80 NGFW, you can provide the protection and performance you need, with the budget you have.

*** THE TZ80 REQUIRES AN ACTIVE SERVICE SUBSCRIPTION TO BE OPERATIONAL ***

Firewall (Gen 8) Subscription Services

24/7 Support:
3 Years
Centralized Management and Alerting (NSM):
3 Years
Intrusion Prevention Service:
3 Years
Application Control:
3 Years
Content Filtering Service:
3 Years
Gateway Anti-Virus:
3 Years
DNS Security including Advanced DNS Filtering:
3 Years
Network Access Control (NAC) Integration with Aruba ClearPass:
3 Years
Wi-Fi 6 integration:
3 Years
Deep Packet TLS/SSL for Decryption & Inspection:
3 Years
GeoIP Country Traffic Identification:
3 Years
Botnet Service:
3 Years
Comprehensive Anti-Spam Service:
3 Years
Capture ATP - Sandboxing (Static, RTDMI, Memory, Hypervisor, Emulation):
3 Years
Centralized Reporting (Advanced) & Full Logging (SaaS):
3 Years (30 Days Included)
Centralized Analytics & Network Forensics (SaaS):
3 Years (30 Days Included)
Firewall Configuration Management:
3 Years
After Hours Critical Support:
3 Years
Embedded Warranty:
3 Years (Up to $200,000)

Firewall (Gen 8) Bundle Type

Upgrade Bundle Version:
Yes

Firewall (Gen 8) Specifications - Firewall General

Operating system:
SonicOS 8

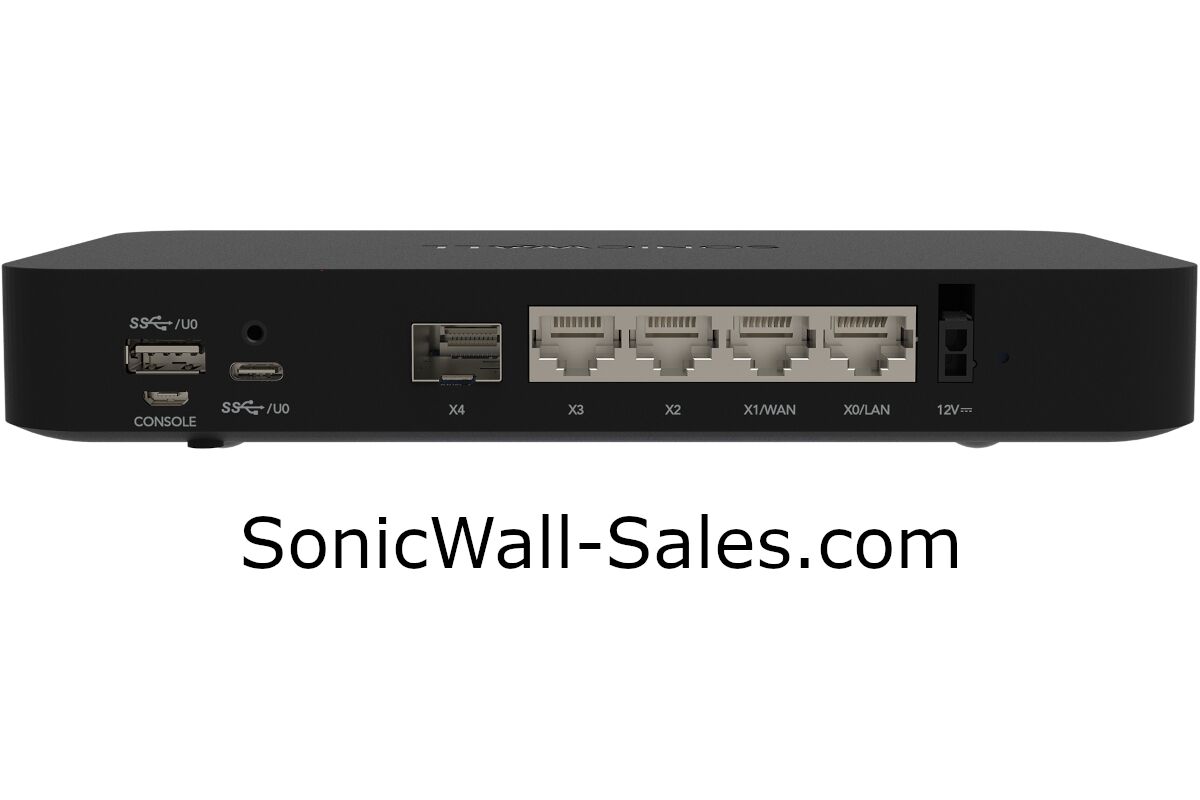

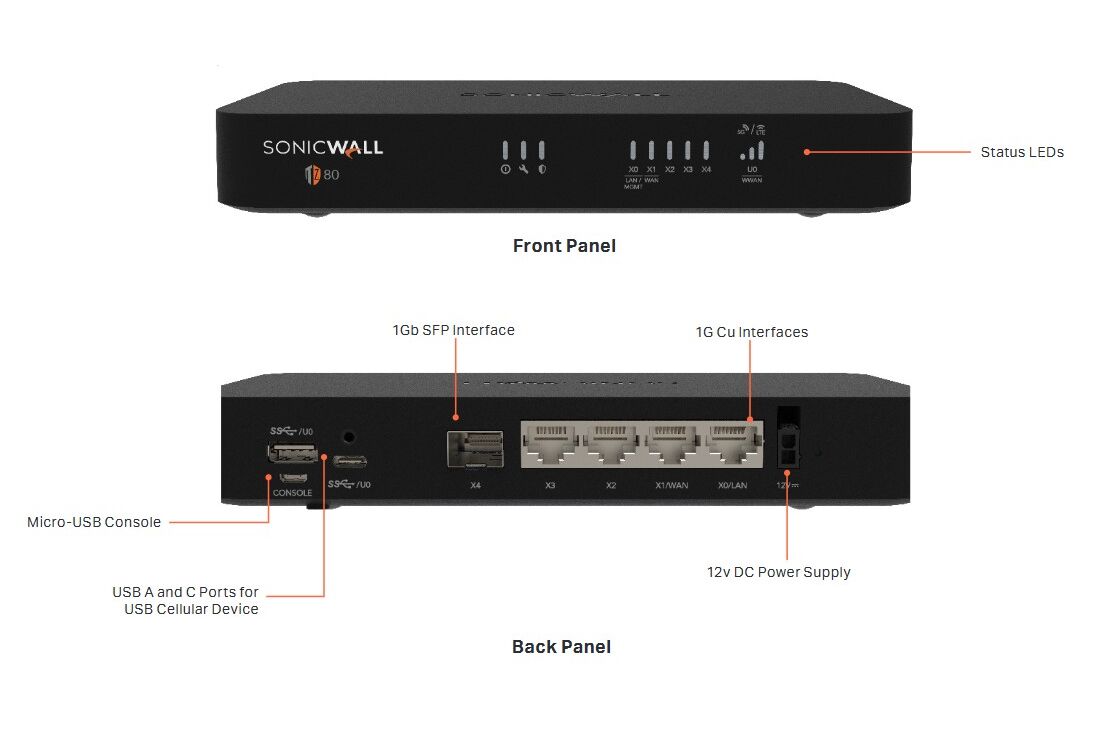

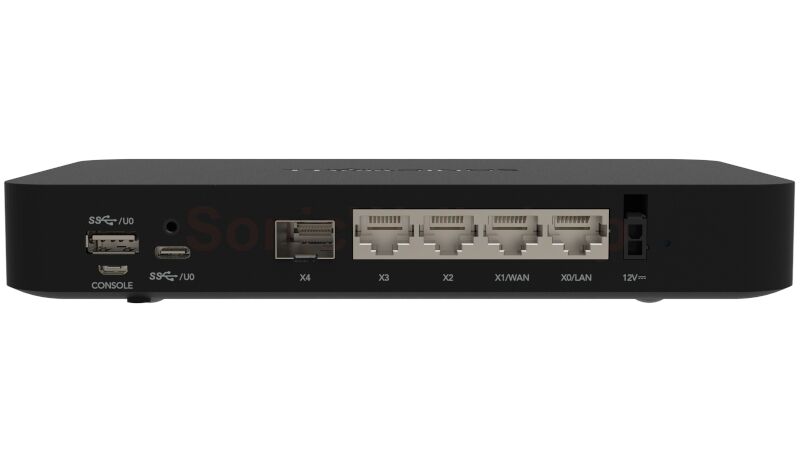

Interfaces:
4x 1GbE Cu, 1x 1G SFP, 1 console, 1 USB (USB type-C or USB type-A)
Centralized management:
Network Security Manager (2.6 and above), CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum):
250
SAML Single Sign-On (SSO) users:
64
Access points supported (maximum):
2

Firewall (Gen 8) Specifications - Firewall/VPN Performance

Firewall inspection throughput:
750 Mbps
Threat prevention throughput:
750 Mbps
Application inspection throughput:
750 Mbps
IPS throughput:
750 Mbps
Anti-malware inspection throughput:
750 Mbps
TLS/SSL inspection and decryption throughput:
250 Mbps
IPSec VPN throughput:
750 Mbps
Connections per second:
7,500
Maximum connections (SPI):
300,000
Maximum connections (DPI):
75,000
Maximum connections (TLS):
10,000

Firewall (Gen 8) Specifications - VPN and ZTNA

Site-to-Site VPN tunnels:
50
IPSec VPN client licences (maximum):
1 (5)
SSL-VPN client licences (maximum):
1 (5)
Encryption/authentication:
DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange:
Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN:
RIP, OSPF, BGP
Certificate support:
Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features:
Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported:
Microsoft Windows 10 and Windows 11
NetExtender:
Microsoft Windows 10 and Windows 11, Linux
Mobile Connect:
Apple iOS, Mac OS X, Google Android
SonicWall Private Access powered by Cloud Secure Edge:
Yes

Firewall (Gen 8) Specifications - Security Services

Deep packet inspection services:
Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS):
HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service:
Yes
Application Visualization:
Yes
Capture Advanced Threat Protection:
Yes
Advanced DNS Filtering:
Yes

Firewall (Gen 8) Specifications - Networking

IP address assignment:
Static (DHCP, PPPoE, L2TP and PPTP client), internal DHCP server, DHCP relay
NAT modes:
1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols:
BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS:
Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication:
LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database:
150
VoIP:
Full H323 v1.5, SIP
Standards:
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications:
Pending: CSfC
High availability:
Active/Standby with stateful synchronization

Firewall (Gen 8) Specifications - Hardware

Form factor:
Desktop
Power supply (W):
36
Maximum power consumption (W):
11.6
Input power:
100-240 VAC, 50-60 Hz, 3A
Total heat dissipation (BTU):
39.6
Dimensions L x W x H (cm):
20.0 x 11.4 x 3.0
Shipping dimensions L x W x H (cm):
40.0 x 33.1 x 29.7
Weight (kg):
0.438
WEEE weight (kg):
0.755
Shipping weight (kg):
0.973
MTBF @25°C (years):
64.3
Environment (operating/storage):
0°C to +40°C / -40°C to +70°C
Humidity:
5-95% non-condensing

Firewall (Gen 8) Specifications - Regulatory

Regulatory model numbers:
APL69-11B
Major regulatory compliance:
FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), RCM, VCCI Class B, UL, cUL, CB, Mexico DGN by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL, TEC/MTCTE

Warranty & Support

Support Cover:
24x7 Support
Warranty/Support:
3-Yr hardware/3-Yr support, firmware updates

Trade in your legacy firewall for a current-generation SonicWall appliance at a significant discount. Take advantage of the Secure Upgrade Plus offer to receive preferred pricing and long-term savings on our state-of-the-art solutions.

Secure Upgrade - Further reading

Secure Upgrade - Datasheet


Eligible Product Replacement Products
TZ 100 Series, TZ 105 Series, TZ 200 Series, TZ 205 Series, TZ 210 Series, TZ 215 Series, TZ 300, TZ 150, TZ 150W, TZ 170, TZ 170W, TZ 170 SP, TZ 170 SPW, TZ 180, TZ 180W, TZ190, TZ 190W, PRO 100, SOHO2, SOHO3, SOHO TZW, SOHO Telecommuter, SonicWall DMZ, XPRS, XPRS2, SonicWall Plus, TELE, TELE2, TELE3, TELE3 SP, SOHO, SOHOW, SOHO 250, SOHO 250W TZ80
TZ 150, TZ 100, TZ 105, SOHO, SOHO 250, TZ 170, TZ 200, TZ 205, TZ 270, TZ 300, TZ 350, TZ 370, TZ 180, TZ 210, TZ 215, TZ 400, TZ 470, TZ 190, NSa 220, NSa 240, NSa 250, TZ 500, TZ 570, TZ 600, TZ 670, PRO 100 Series, SOHO Series, Telecommuter, DMZ, XPRS Series, Plus, TELE Series TZ280 Series, TZ380 Series, TZ480 Series, TZ580 Series, TZ680 Series
TZ 190, NSa 220, NSa 240, NSa 250, TZ 400, TZ 470,TZ 500, TZ 570, TZ 600, TZ 670 TZ580 Series, TZ680 Series, NSa 2800
NSa 2400, NSa 2600, NSa 2650, NSa 2700, PRO 200, PRO 230, PRO 1260, PRO 2040 TZ580 Series, TZ680 Series, NSa 2800, NSa 3800
NSa 3500, NSa 3600, NSa 3650, NSa 3700, PRO 3060,PRO 4000, PRO 4100, PRO 4060, PRO-VX, PRO 300, PRO 330 GX250 NSa 2800, NSa 3800, NSa 4800
NSa 4500, NSa 4600, NSa 4650, NSa 4700 NSa 3800, NSa 4800, NSa 5800
NSa 5000, NSa E5500, NSa 5600, NSa 5650, NSa 5700, PRO 5060c, PRO 5060f, GX650 NSa 4800, NSa 5800, NSa 6800
NSa E6500, NSa 6600, NSa 6650, NSa E7500, NSa E7510, NSa E8500, NSa E8510 NSa 5800, NSa 6800
SM 9200, NSa 9250, SM 9400, NSa 9450 NSa 6800

You can easily migrate your existing settings file using the SonicWall Migration Tool.

Upgrade Models

TZ80 Secure Upgrade - Secure Connect Edition (3 Years)
03-SSC-2847
£340.00 (£408.00 inc VAT)
+ −
TZ80 Secure Upgrade - Advanced Edition (3 Years)
03-SSC-2850
£477.00 (£572.40 inc VAT)
+ −
TZ80 Secure Upgrade - Managed Edition (3 Years)
03-SSC-3062
£1,127.00 (£1,352.40 inc VAT)
+ −

Gen 7/8 Subscriptions Overview

Secure Connect:

  • 24/7 Support
  • Centralized Management and Alerting (part of Support)

Advanced Protection Security Suite (APSS):

  • 24/7 Support
  • Centralized Management and Alerting (part of Support)
  • Intrusion Prevention System (IPS)
  • Application Control
  • Content Filtering Service
  • Gateway Anti-Virus
  • DNS Security including Advanced DNS Filtering**
  • Network Access Control (NAC) Integration with Aruba ClearPass
  • Wi-Fi 6 integration
  • Deep Packet TLS/SSL for Decryption & Inspection
  • Geo-IP Country Traffic Identification
  • Botnet Service
  • Comprehensive Anti-Spam Service
  • Capture ATP - Sandboxing (Static, RTDMI, Memory, Hypervisor, Emulation)
  • (7-Day Included) Centralized Reporting (Advanced) & Full Logging****
  • (7-Day Included) Centralized Analytics & Network Forensics****
  • Embedded Warranty (Up to $100,000*****)

Managed Protection Security Suite (MPSS):

  • 24/7 Support
  • Centralized Management and Alerting (part of Support)
  • Intrusion Prevention System (IPS)
  • Application Control
  • Content Filtering Service
  • Gateway Anti-Virus
  • DNS Security including Advanced DNS Filtering**
  • Network Access Control (NAC) Integration with Aruba ClearPass
  • Wi-Fi 6 integration
  • Deep Packet TLS/SSL for Decryption & Inspection
  • Geo-IP Country Traffic Identification
  • Botnet Service
  • Comprehensive Anti-Spam Service
  • Capture ATP - Sandboxing (Static, RTDMI, Memory, Hypervisor, Emulation)
  • (30-Day Included) Centralized Reporting (Advanced) & Full Logging****
  • (30-Day Included) Centralized Analytics & Network Forensics****
  • Firewall Configuration Management
  • After Hours Critical Support
  • Embedded Warranty - Up to $200,000

Support

SonicWall's warranty and support agreements provide technical assistance during standard coverage hours, typically 8x5 or 24x7 (Standard Support = 8x5).

SonicWall Support Services (link to page)

All SonicWall Datasheets
