TZ380 Wireless-AX TotalSecure - Essential Edition (1 Year)

Firewall inspection throughput:3.5 Gbps
Threat prevention throughput:1.5 Gbps
Interfaces:8x1GbE, 2x 5/2.5/1G SFP+
Max. SSL VPN Clients:100
£905.00
(£1,086.00 inc VAT)
03-SSC-9270
15 item(s)
+ −

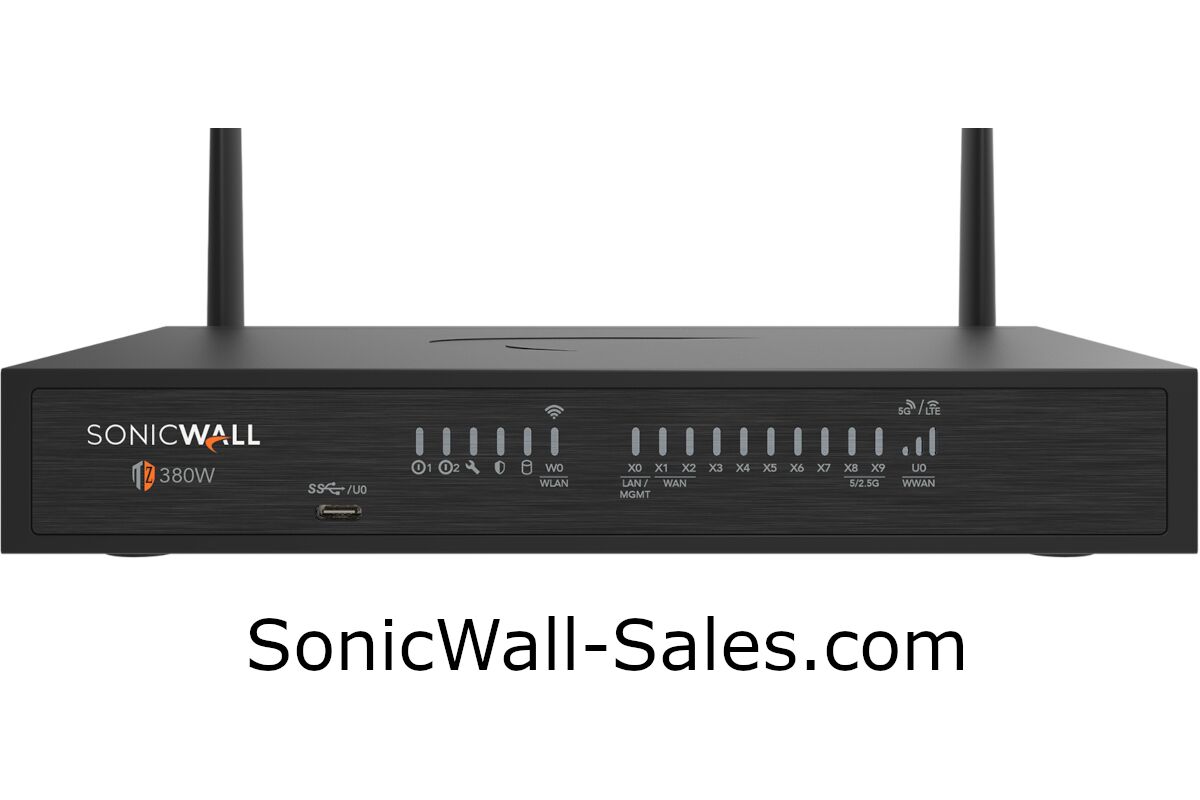

The SonicWall TZ380 is part of the new Gen 8 TZ Series which also includes the TZ80, TZ280, TZ380, TZ480, TZ580 & TZ680 and available in different bundles.

The Gen 8 TZ series are highly scalable, with high port density of up to 10 ports. It features both in-built and an expandable storage of up to 512 GB, that enables various features including logging, reporting, caching, firmware backup and more. An optional second power supply provides added redundancy in case of failure on select models.

SonicWall TZ Series are designed for small and mid-sized organizations, and distributed enterprises with SD-Branch locations. The latest series deliver best-in-class performance at a low TCO.

Designed for small organizations and lean branches, the TZ380 series deliver industry-validated security effectiveness with best-in-class price-performance.

If unsure which model or bundle is right for you, then please get in touch.

Firewall (Gen 8) Specifications - Firewall General

Operating system:
SonicOS 8
Interfaces:

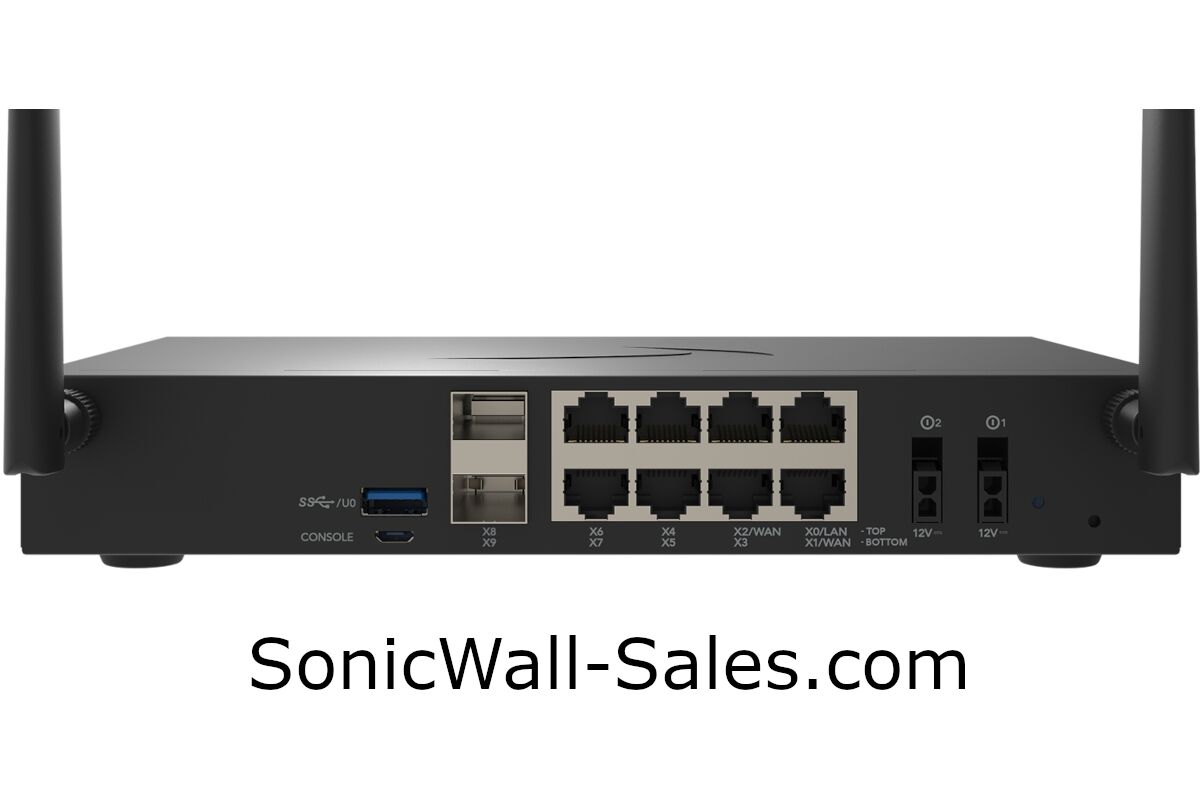

8x1GbE, 2x 5/2.5/1G SFP+, 1 USB (type-C), 1 console (Micro-USB)
Wireless support:
2x2 802.11ax
Power over Ethernet (PoE) support:
N/A
Storage (expansion):
Optional: up to 512 GB
Centralized management:
Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum):
128
SAML Single Sign-On (SSO) users:
1,000
Access points supported (maximum):
16

Firewall (Gen 8) Specifications - Firewall/VPN Performance

Firewall inspection throughput:
3.5 Gbps
NGFW throughput:
N/A
Threat prevention throughput:
1.5 Gbps
Application inspection throughput:
2 Gbps
IPS throughput:
2 Gbps
Anti-malware inspection throughput:
2 Gbps
TLS/SSL inspection and decryption throughput:
600 Mbps
IPSec VPN throughput:
1.6 Gbps
Connections per second:
15,000
Maximum connections (SPI):
1,100,000
Maximum connections (DPI):
250,000
Maximum connections (TLS):
40,000

Firewall (Gen 8) Specifications - VPN and ZTNA

Site-to-Site VPN tunnels:
200
IPSec VPN client licences (maximum):
5 (200)
SSL-VPN client licences (maximum):
2 (100)
Encryption/authentication:
AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography
Key exchange:
Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN:
RIP, OSPF, BGP
Certificate support:
Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features:
Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported:
Microsoft Windows 7, Windows 8, Windows 8.1 and Windows 10
NetExtender:
Microsoft Windows 10, Windows 10/11 and Linux
Mobile Connect:
Apple iOS, Mac OS X, Google Android, Chrome OS, Windows
SonicWall Private Access powered by Cloud Secure Edge:
Included in 3&Free Loyalty Program

Firewall (Gen 8) Specifications - Security Services

Deep packet inspection services:
Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS):
Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service:
Yes
Application Visualization:
Yes
Capture Advanced Threat Protection:
Yes
Advanced DNS Filtering:
Yes

Firewall (Gen 8) Specifications - Networking

IP address assignment:
Static (DHCP, PPPoE, L2TP and PPTP client), internal DHCP server, DHCP relay
NAT modes:
1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols:
BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS:
Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication:
LDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO ¹, RADIUS accounting, NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
Local user database:
250
VoIP:
Full H323 v1.5, SIP
Standards:
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications:
IPv6
High availability:
Active/Standby with stateful synchronization

Firewall (Gen 8) Specifications - Hardware

Form factor:
Desktop
Power supply (W):
60
Maximum power consumption (W):
17.4
Input power:
100-240 VAC, 50-60 Hz
Redundant power supply:
1 (Optional)
Total heat dissipation (BTU):
59.33
Dimensions L x W x H (cm):
22.5 x 14.9 x 3.5
Shipping dimensions L x W x H (cm):
46.3 x 36.8 x 44.2
Weight (kg):
0.85
WEEE weight (kg):
1.24
Shipping weight (kg):
1.47
MTBF @25°C (years):
24.9
Environment (operating/storage):
0°C to +40°C / -40°C to +70°C
Humidity:
5-95% non-condensing

Firewall (Gen 8) Specifications - Integrated Wireless (TZ 280W and TZ 380W only)

Standards:
802.11a/b/g/n/ac/ax, WPA, WPA2, WPA3, 802.11i, EAP-PEAP, EAP-TTLS
Frequency bands:
802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 5.180-5.825 GHz; 802.11ax: 5.180-5.825 GHz
Operating channels:
802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4; 802.11b/g: US and Canada 1-11, Europe 1-13, Japan (14 - 802.11b only); 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13; 802.11n (5 GHz): US and Canada 36-48/149-165, Euro
Transmit output power:
Based on the regulatory domain specified by the system administrator
Transmit power control:
Yes
Data rates supported:
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11n: 15, 30, 45, 60, 90, 120, 135, 150, 30, 60, 90, 120, 180, 240, 270, 300 Mbps per channel; 802.
Modulation technology spectrum:
802.11a: OFDM/64QAM; 802.11b: DSSS; 802.11g: OFDM/64QAM/DSSS; 802.11n: OFDM/64QAM; 802.11ac: OFDM/256QAM; 802.11ax: OFDMA/1024QAM

Firewall (Gen 8) Specifications - Regulatory

Regulatory model numbers:
APL72-121
Major regulatory compliance:
FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Major regulatory compliance (wireless models):
FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal & Radio, VCCI Class B, KCC/MSIP, BSMI, NCC SRRC, MTCTE/TEC, CB
Major regulatory compliance (PoE models):
N/A

Warranty & Support

Support Cover:
24x7 Support
Warranty/Support:
1-Yr hardware/1-Yr support, firmware updates

Gen 7/8 Subscriptions Overview

Secure Connect Security Suite (SCSS):

  • 24/7 Support
  • Centralized Management and Alerting (part of Support)

(SCSS only available on TZ80 and NSv)

Essential Protection Security Suite (EPSS)*:

  • 24/7 Support
  • Centralized Management and Alerting (part of Support)
  • Intrusion Prevention System (IPS)
  • Application Control
  • Content Filtering Service
  • Gateway Anti-Virus
  • Network Access Control (NAC) Integration with Aruba ClearPass
  • Wi-Fi 6 integration
  • Deep Packet TLS/SSL for Decryption & Inspection
  • Geo-IP Country Traffic Identification
  • Botnet Service
  • Comprehensive Anti-Spam Service
  • Capture ATP - Sandboxing (Static, RTDMI, Memory, Hypervisor, Emulation)
  • Summarized Reporting
  • Embedded Warranty (Up to $100,000*****)

Advanced Protection Security Suite (APSS):

  • 24/7 Support
  • Centralized Management and Alerting (part of Support)
  • Intrusion Prevention System (IPS)
  • Application Control
  • Content Filtering Service
  • Gateway Anti-Virus
  • DNS Security including Advanced DNS Filtering**
  • Network Access Control (NAC) Integration with Aruba ClearPass
  • Wi-Fi 6 integration
  • Deep Packet TLS/SSL for Decryption & Inspection
  • Geo-IP Country Traffic Identification
  • Botnet Service
  • Comprehensive Anti-Spam Service
  • Capture ATP - Sandboxing (Static, RTDMI, Memory, Hypervisor, Emulation)
  • (7-Day Included) Centralized Reporting (Advanced) & Full Logging****
  • (7-Day Included) Centralized Analytics & Network Forensics****
  • Embedded Warranty (Up to $100,000*****)

Managed Protection Security Suite (MPSS):

  • 24/7 Support
  • Centralized Management and Alerting (part of Support)
  • Intrusion Prevention System (IPS)
  • Application Control
  • Content Filtering Service
  • Gateway Anti-Virus
  • DNS Security including Advanced DNS Filtering**
  • Network Access Control (NAC) Integration with Aruba ClearPass
  • Wi-Fi 6 integration
  • Deep Packet TLS/SSL for Decryption & Inspection
  • Geo-IP Country Traffic Identification
  • Botnet Service
  • Comprehensive Anti-Spam Service
  • Capture ATP - Sandboxing (Static, RTDMI, Memory, Hypervisor, Emulation)
  • (30-Day Included) Centralized Reporting (Advanced) & Full Logging****
  • (30-Day Included) Centralized Analytics & Network Forensics****
  • Firewall Configuration Management
  • After Hours Critical Support
  • Embedded Warranty - Up to $200,000

Support

SonicWall's warranty and support agreements provide technical assistance during standard coverage hours, typically 8x5 or 24x7 (Standard Support = 8x5).

SonicWall Support Services (link to page)

All SonicWall Datasheets

*This option is only available for Gen 7 TZ Series
** DNS Filtering is not supported on WireMode interfaces
**** Reporting and analytics can be extendable to 30, 90 or 365 days.
***** Only for firewalls sold & registered after November 1, 2024
