TZ80 High Availability

Firewall inspection throughput:750 Mbps
Threat prevention throughput:750 Mbps
Interfaces:4x 1GbE Cu, 1x 1G SFP
Max. SSL VPN Clients:5
£251.00
(£301.20 inc VAT)
03-SSC-2749
89 item(s)
+ −

*** This HA version requires an existing TZ80 to be paired to, you cannot use a HA appliance on its own ***

The SonicWall TZ80 is a new generation firewall that fits beneath the Gen 8 TZ Series which includes the TZ280, TZ380, TZ480, TZ580 & TZ680 and available in different bundles.

SonicWall TZ80; the subscription-based NGFW purpose-built for small offices, home offices, and IoT, delivers best-in-class security efficacy and performance, and simplified management at a low TCO.

Protect your businesses and compact workspaces with intrusion prevention, anti-malware, content/URL filtering, and application control. SonicWall TZ80 delivers the same enterprise-grade advanced threat protection available with all our NGFWs, at best-in-class threat protection throughput and a low TCO on firewall inspection throughput.

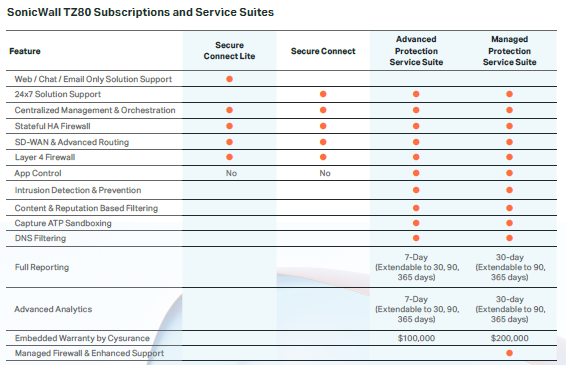

Exercise the flexibility to meet changing security needs. TZ80 has subscription-based licensing, security service options, and a la carte reporting and analytics add-ons.

Accelerate time-to-value with rapid deployment and simplified administration with zero-touch provisioning, remote, mass deployment capabilities, and auto-synchronization.

Enhance security posture using the native integration with SonicWall Secure Edge for Zero Trust Edge (ZTE) and Security Services Edge (SSE) security model extensions.

With a SonicWall TZ80 NGFW, you can provide the protection and performance you need, with the budget you have.

*** THE TZ80 REQUIRES AN ACTIVE SERVICE SUBSCRIPTION TO BE OPERATIONAL ***

Firewall (Gen 8) Specifications - Firewall General

Operating system:
SonicOS 8
Interfaces:
4x 1GbE Cu, 1x 1G SFP, 1 console, 1 USB (USB type-C or USB type-A)
Centralized management:
Network Security Manager (2.6 and above), CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum):
250
SAML Single Sign-On (SSO) users:
64
Access points supported (maximum):
2

Firewall (Gen 8) Specifications - Firewall/VPN Performance

Firewall inspection throughput:
750 Mbps
Threat prevention throughput:
750 Mbps
Application inspection throughput:
750 Mbps
IPS throughput:
750 Mbps
Anti-malware inspection throughput:
750 Mbps
TLS/SSL inspection and decryption throughput:
250 Mbps
IPSec VPN throughput:
750 Mbps
Connections per second:
7,500
Maximum connections (SPI):
300,000
Maximum connections (DPI):
75,000
Maximum connections (TLS):
10,000

Firewall (Gen 8) Specifications - VPN and ZTNA

Site-to-Site VPN tunnels:
50
IPSec VPN client licences (maximum):
1 (5)
SSL-VPN client licences (maximum):
1 (5)
Encryption/authentication:
DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange:
Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN:
RIP, OSPF, BGP
Certificate support:
Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features:
Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported:
Microsoft Windows 10 and Windows 11
NetExtender:
Microsoft Windows 10 and Windows 11, Linux
Mobile Connect:
Apple iOS, Mac OS X, Google Android
SonicWall Private Access powered by Cloud Secure Edge:
Yes

Firewall (Gen 8) Specifications - Security Services

Deep packet inspection services:
Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS):
HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service:
Yes
Application Visualization:
Yes
Capture Advanced Threat Protection:
Yes
Advanced DNS Filtering:
Yes

Firewall (Gen 8) Specifications - Networking

IP address assignment:
Static (DHCP, PPPoE, L2TP and PPTP client), internal DHCP server, DHCP relay
NAT modes:
1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols:
BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS:
Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication:
LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database:
150
VoIP:
Full H323 v1.5, SIP
Standards:
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications:
Pending: CSfC
High availability:
Active/Standby with stateful synchronization

Firewall (Gen 8) Specifications - Hardware

Form factor:
Desktop
Power supply (W):
36
Maximum power consumption (W):
11.6
Input power:
100-240 VAC, 50-60 Hz, 3A
Total heat dissipation (BTU):
39.6
Dimensions L x W x H (cm):
20.0 x 11.4 x 3.0
Shipping dimensions L x W x H (cm):
40.0 x 33.1 x 29.7
Weight (kg):
0.438
WEEE weight (kg):
0.755
Shipping weight (kg):
0.973
MTBF @25°C (years):
64.3
Environment (operating/storage):
0°C to +40°C / -40°C to +70°C
Humidity:
5-95% non-condensing

Firewall (Gen 8) Specifications - Regulatory

Regulatory model numbers:
APL69-11B
Major regulatory compliance:
FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), RCM, VCCI Class B, UL, cUL, CB, Mexico DGN by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL, TEC/MTCTE

Warranty & Support

Support Cover:
None, optional 24x7 or 8x5
Warranty/Support:
1-Yr hardware/no support or firmware updates
